National Tour
PRODUCTION DESIGN HOMEPAGE
RUN SHEETS Act One
Production Direction: Sammy Dallas Bayes
Set Design: Steve Gilliam
Costume Design:
Lighting Design: Ken Billington
Sound Design:
Musical Director:
Production Manager: Geoff Quart
Production Stage Manager:
Assistant Director/Choreographer: ]
General Management: Troika Entertainment
SLG DESIGN & CREATIVE TALENT
210 . 494 .7373 slgdesign@satx.rr.com
Please click the links below for sketches and drawings. The designs created for Troika Entertainment's production of FIDDLER ON THE ROOF are the property of SLG Design & Creative Talent and Steve Gilliam. Contact us if you are interested in these or other production designs for your theatre.
Click on the following links. The House study may prove helpful. The 1/4 composition is a large file. 1/8 is smaller, but still a large file. I mention this as it may be easy to view the plans posted sequentially below.
| House Movement Study | 1/4 Act One | 1/8 Act One |
10/26/08

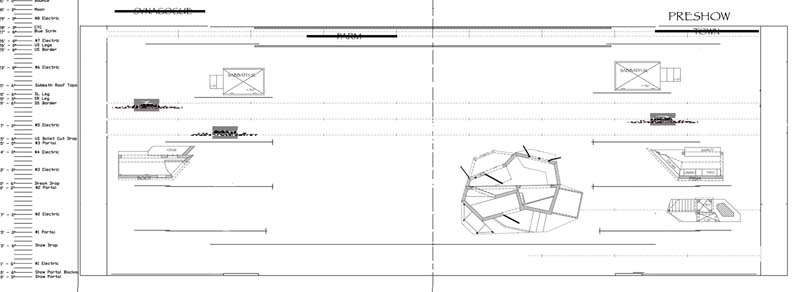

Show Drop up to reveal the backdoor of the house and the Fiddler on the roof.
House comes to center, spins to front as the doors open up to reveal the interior of the house.

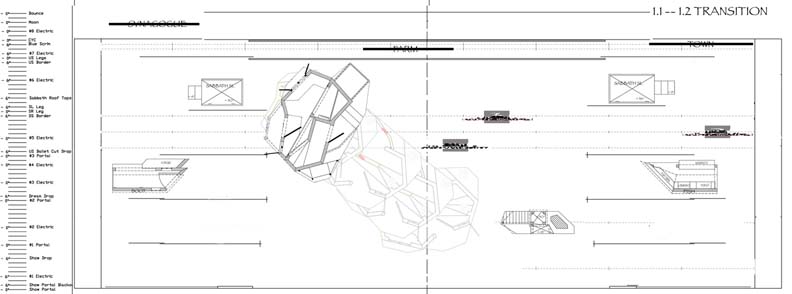

Wings fold in and house moves diagonally USR and rotates into the Cheese trough position allowing props to set the house for the Sabbath prayer.
House sweeps down to center and rotates while opening the wings/
Wings close and house pivots around to the back side of the house while actors move on sabbath platforms, the flying roofs come in and the Boot and Fish shop enter.

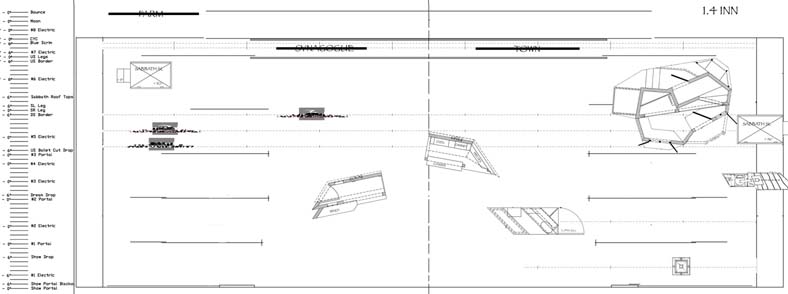

Boot and Fish flip around to become the Inn with the Bar unit slip wagon coming on.

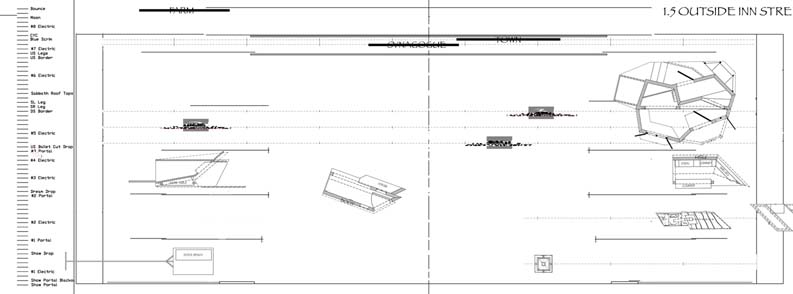

Entrance Turns around to become the exterior for the Inn and a lamp slip wagons onstage.
House comes onstage as shown, opens up for props to preset the bed.
House moves to position as wings open to reveal the bedroom.
Bed disconnects with actor/dances behind headboard. House closes and move up and off as Dream Drop flies in.
INTERMISSION
