The St. Louis MUNY 2013

SPAMALOT

Producer: Mike Issacson
Production Direction & Choreography: Denis Jones
Musical Director: Ben Whitely
Set Design: Steve and Sam Gilliam
Costume Design:
Lighting Design: Seth Jackson

Video Content Design: Nathan Scheurer
Sound Design: Jason Krueger
Production Stage Manager: Nevin Hedly
Production Manager: Tracy Utzmeyer

SLG DESIGN & CREATIVE TALENT
210 . 494 .7373 slgdesign@satx.rr.com

Please click the links below for sketches and drawings. The designs created are the property of SLG Design & Creative Talent and Steve Gilliam. Contact us if you are interested in these or other production designs for your theatre.

Spamalot Homepage Scenic Outline 02.05.13

REVISED 02.24.13

02.24.13 Opening Weather Map
_________________________________________________________________________________________________________________

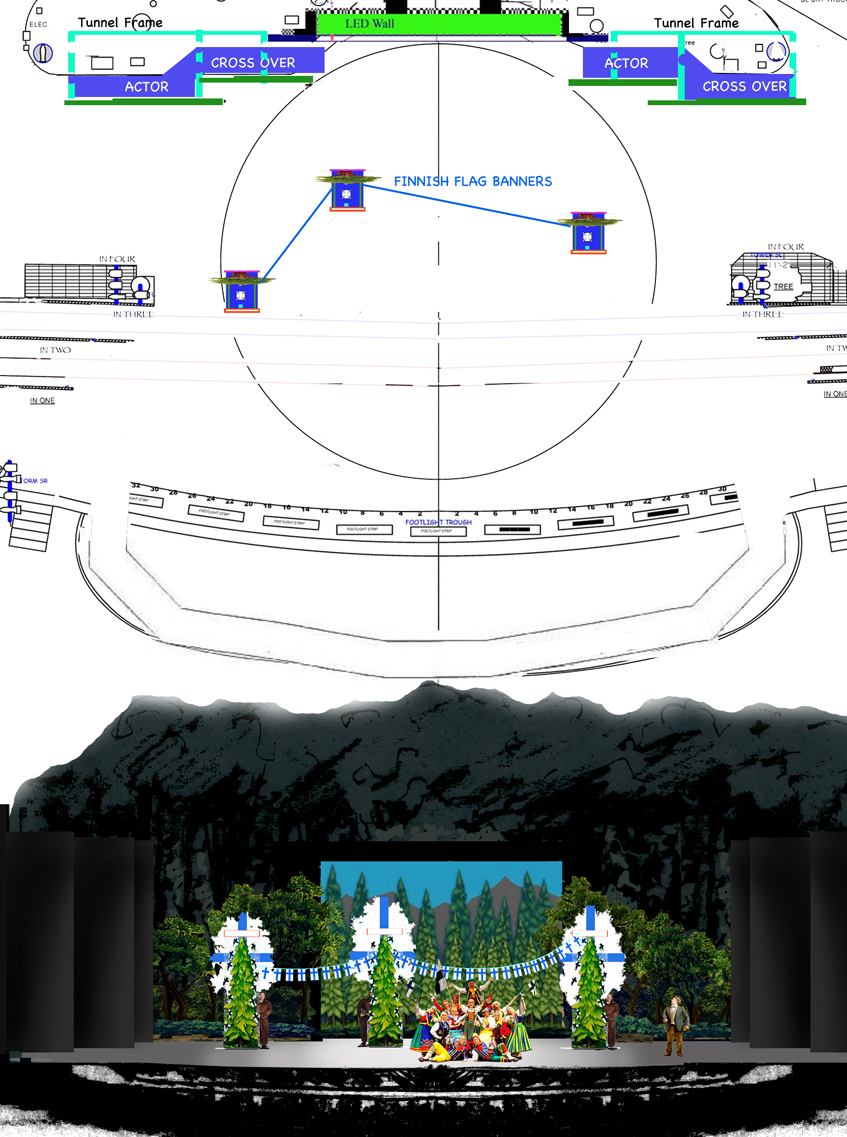

02.24.13 FINLAND. Medieval Trees spin around and pine trees fall from drop boxes. Finnish flags are strung from tree to tree.
_________________________________________________________________________________________________________________

02.24.13 Towers slide on with Castle in background. Towers are on the leading edge of Boom 2.
_________________________________________________________________________________________________________________

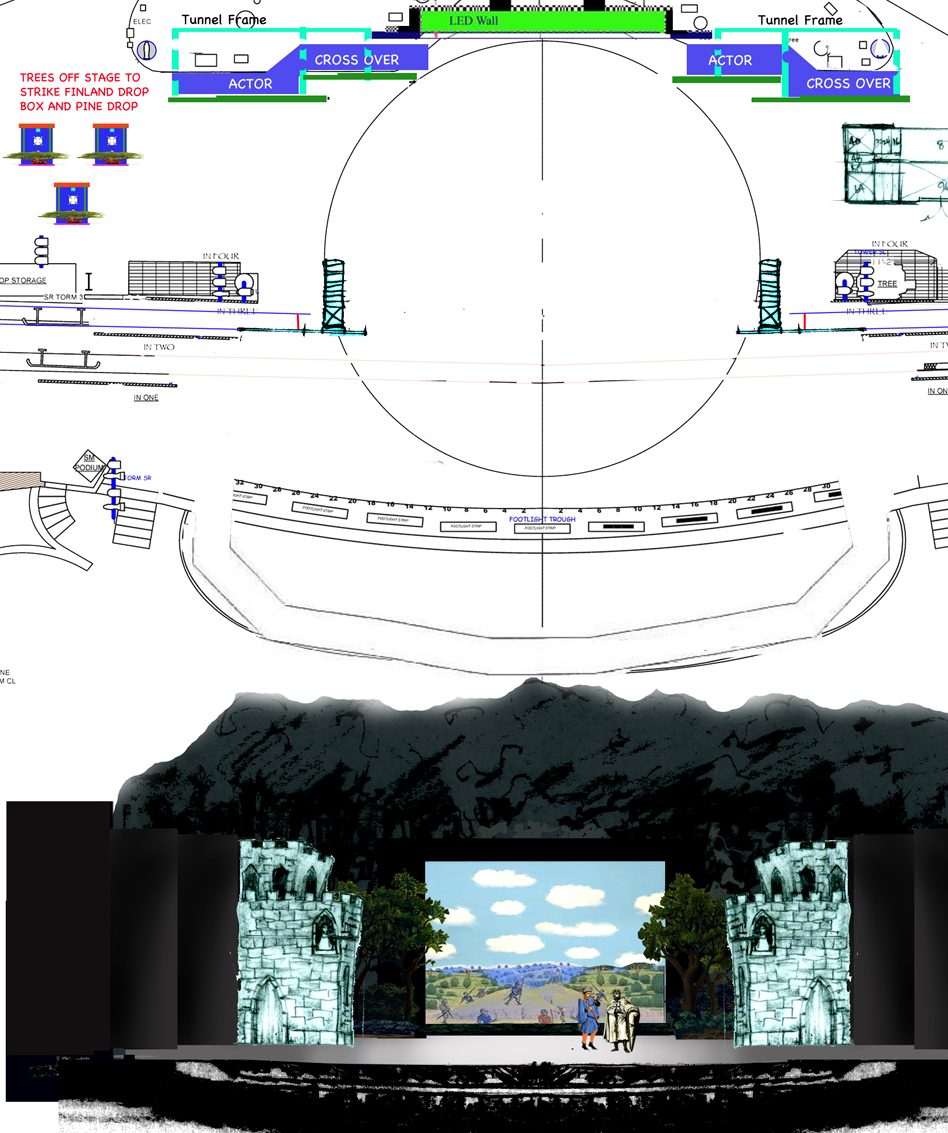

02.24.13 Arthur's Entrance and Towers.
_________________________________________________________________________________________________________________

02.24.13 Plague Village. Towers slide off. Castle to CL. Plague wagon.
_________________________________________________________________________________________________________________

02.24.13 Mud Mound. Mound comes onstage via push stick. Trees adjust for composition.
_________________________________________________________________________________________________________________

02.24.13 Lady of the Lake. Scaled down "Pirate Jungle Unit" enters. The "Night Castle" is for styling. Grass ground rows come on. An Actor or IA in monk's costume pulls a wagon with a dry ice machine and releases fog on stage. Painted lake curtains open and Lady of the Lake Float is pushed on by Lakers.
_________________________________________________________________________________________________________________

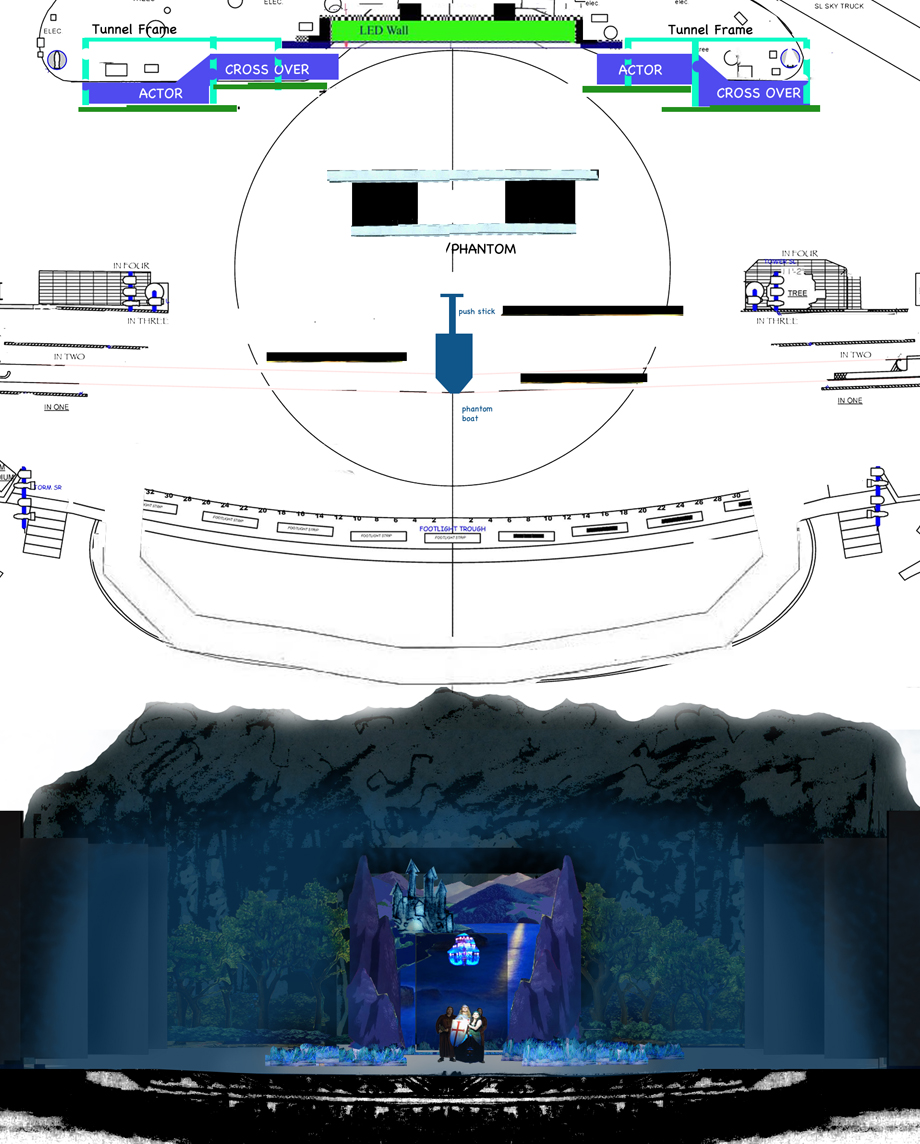

02.24.13 Phantom Entrance. Scenery moves to CL as Lady float moves DSL. Grass ground rows are adjusted. Lake curtains open and stay open. Phantom boat is pushed on by IA in monk's costumes. Dry Ice is applied. Chandelier is lower and at end of scene falls and pyro is set off.
_________________________________________________________________________________________________________________

02.24.13 Campfire. Denis has not approved this Boom closure. We will discuss.
_________________________________________________________________________________________________________________

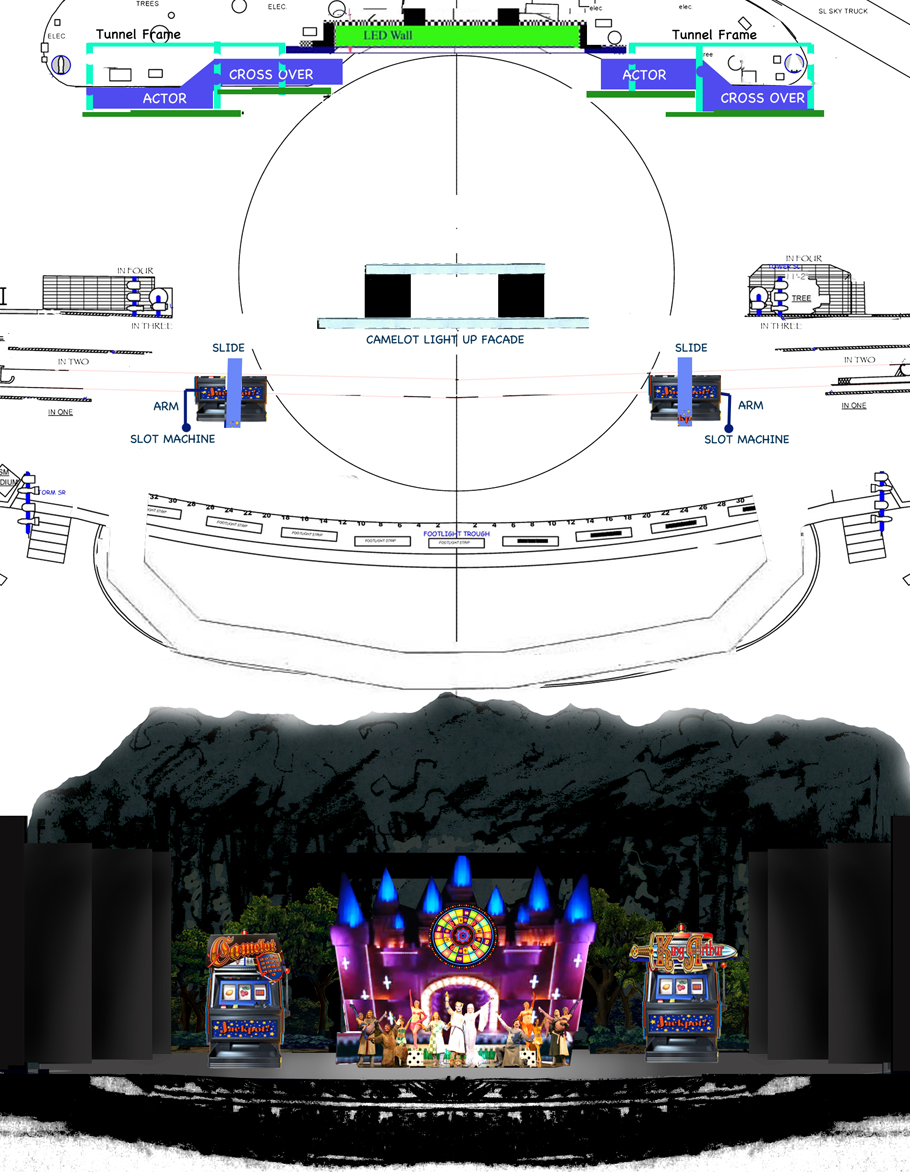

02.24.13 Camelot. The Ladt/Phantom unit is spun around to reveal an electronic Camelot. (scenery shown here is from another production ... it is merely for discussion as we need to include Tracy and Seth in this) Slot machines will come on as shown. They may open up for dancers to come out or handles to spin the Grail. Grail. Grail.
_________________________________________________________________________________________________________________

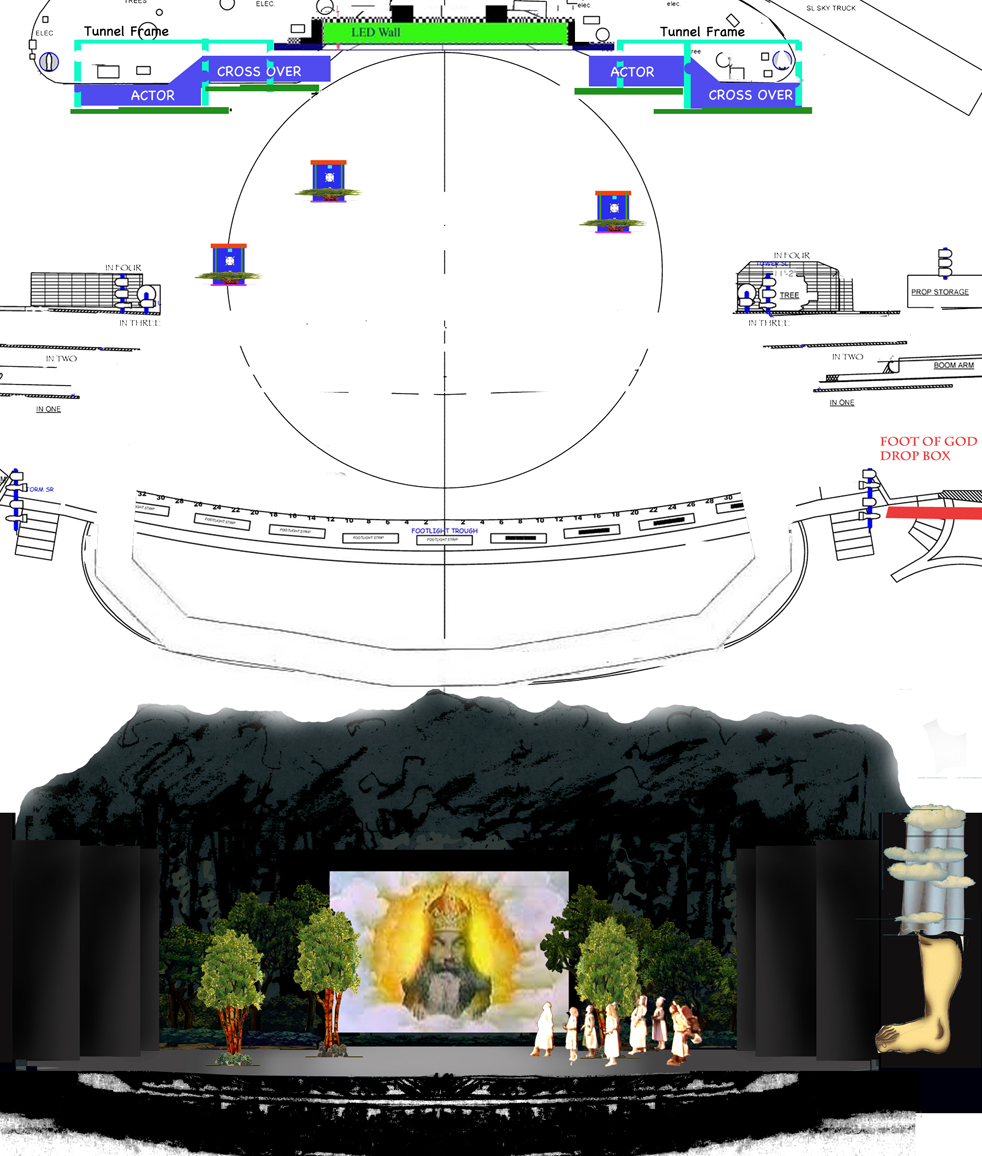

02.24.13 God Speaks to Arthur. Feet of God cut drop falls from a drop box on the side of the stage. ROLL drops up.
_________________________________________________________________________________________________________________

02.24.13 Mountain and Grail. Mountain profile drives on connected to a fork lift. On cue, Grail Cup is raise with Lady of the Lake.
_________________________________________________________________________________________________________________

02.24.13 French Castle with Rabbit and Cow Launch.
_________________________________________________________________________________________________________________

02.24.13 INTERMISSION
_________________________________________________________________________________________________________________

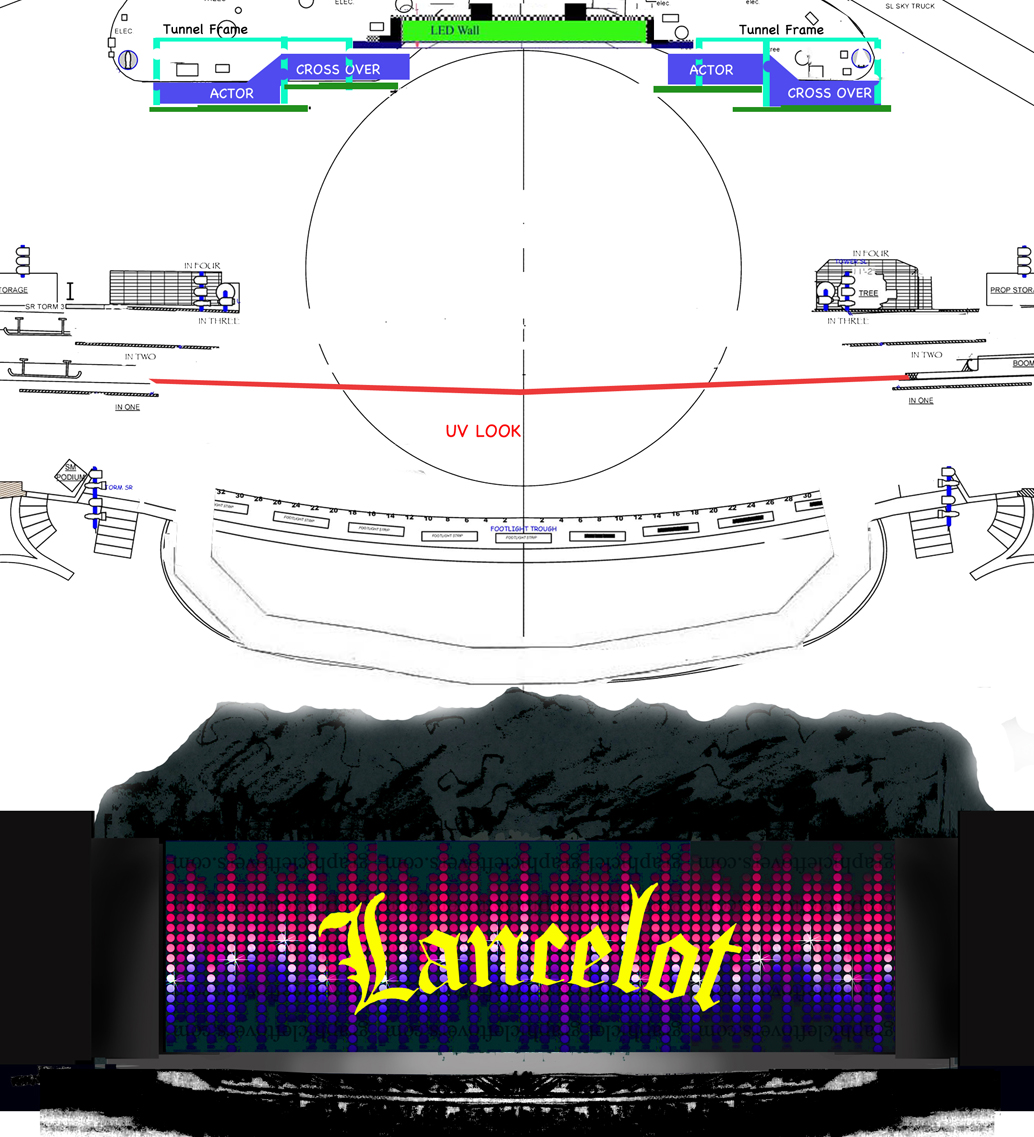

02.24.13 UV Look in Act II, Boom 1
_________________________________________________________________________________________________________________

ACT TWO ADDITIONS 02.21.13

02.21.13 Basic Forest Look.
_________________________________________________________________________________________________________________

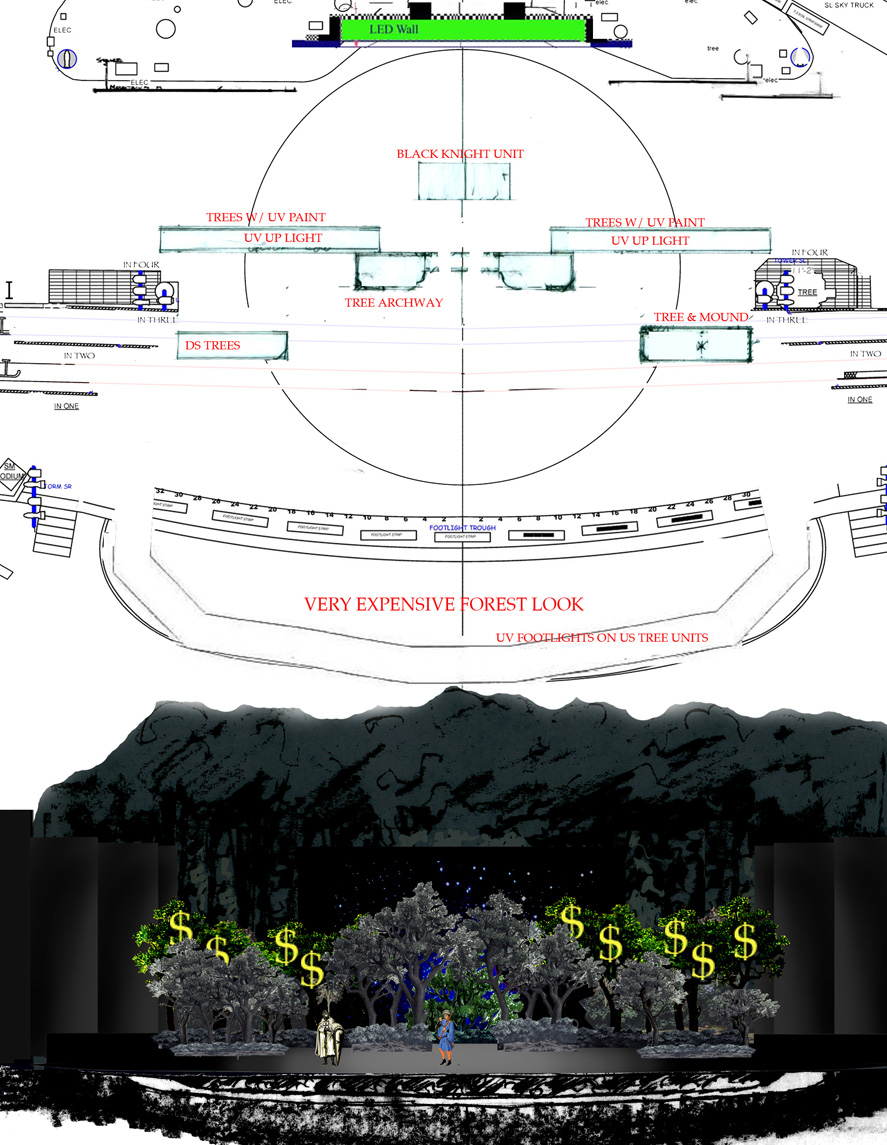

02.21.13 Very Expensive Forest Look.
_________________________________________________________________________________________________________________

02.21.13 Black Knight Look.
_________________________________________________________________________________________________________________

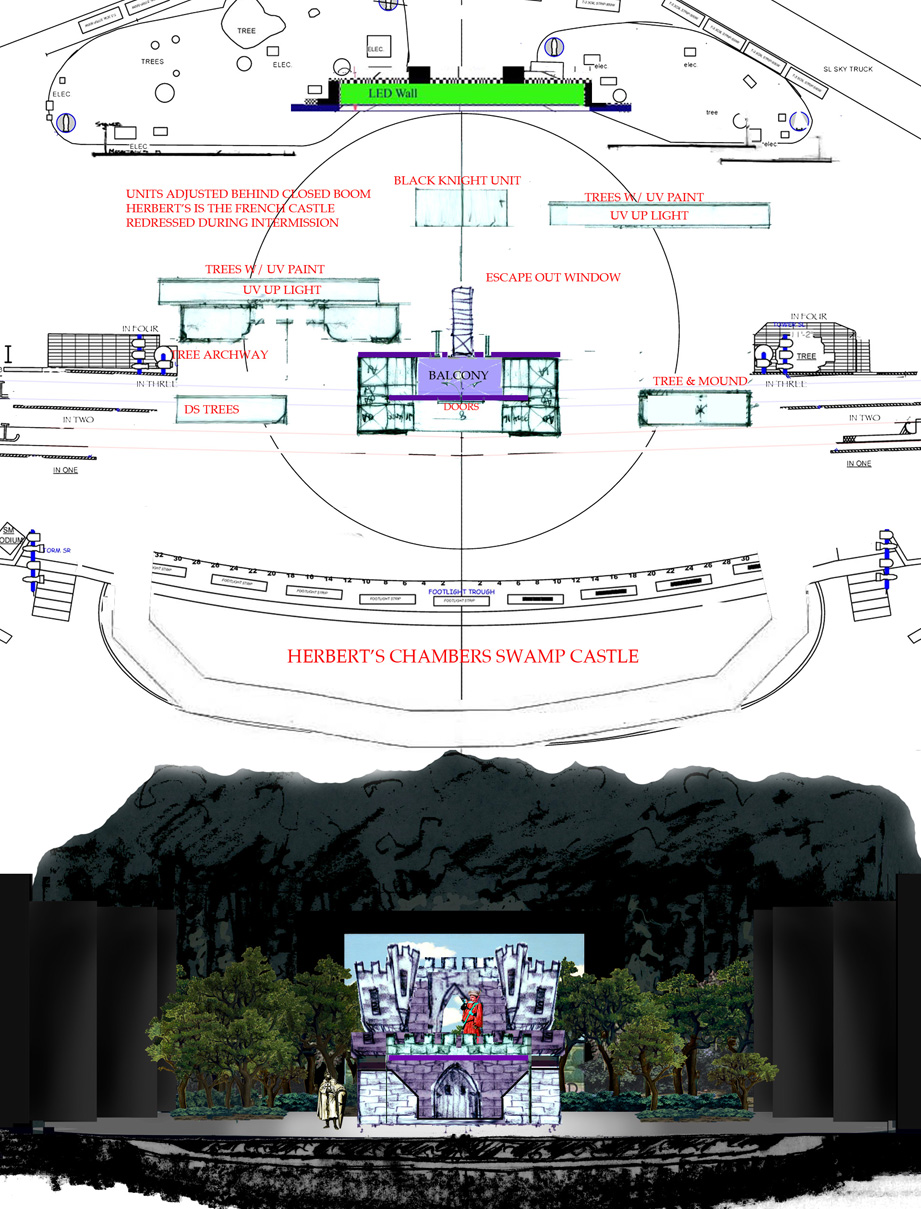

02.21.13 Herbert's Chambers, Swamp Castle.
_________________________________________________________________________________________________________________

02.21.13 Rabbitt Mound
______________________________________________________________________________

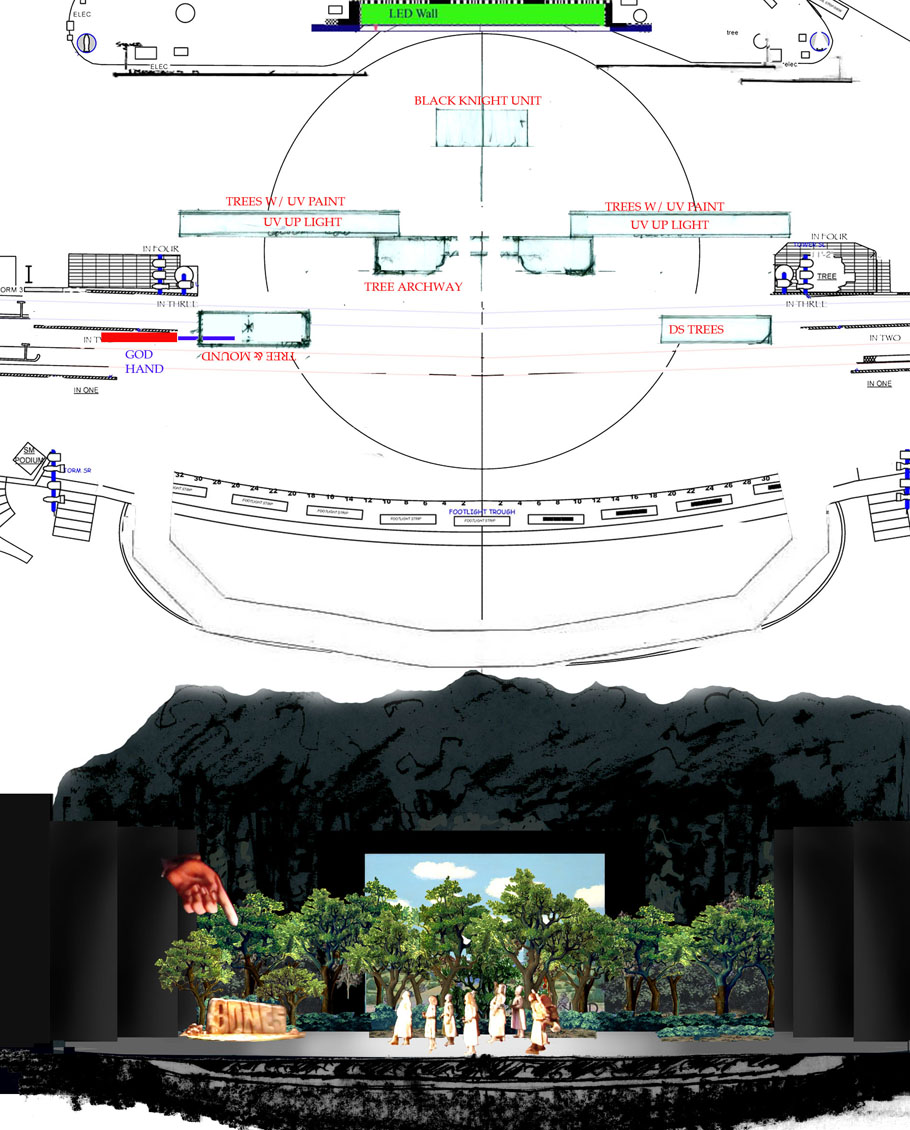

02.21.13 Bones
_________________________________________________________________________________________________________________
